Nu-X Hook Drum & Loop Guitar Effect Pedal NDL-3.
NU-X NDL-3 Hook Drum & Loop Guitar Effect Pedal
This is a combined drum machine and phrase looper in a single miniature pedal format.
Disguised by it's tiny form factor, Hook is a complete practice or accompaniment tool for a solo guitar player who needs intuitive features with simplicity of use.
Supplied by a Nu-X authorised dealer.
Guidance:
- The drum section is controlled by the play/pause button which doubles as a Smart Tap Tempo trigger.
- 11 individual rhythm styles can be selected from to cover a vast range of music genres with output governed by an independent Drum Level control.
- The inbuilt 24-bit phrase looper has up to 6 minutes recording time with unlimited overdubs.
- The current tempo is indicated by the integral LED within the Smart Tap Tempo trigger.
- The Looper recording is activated by tapping the footswitch, tapping again begins playback and tapping again begins overdubbing.
- Holding the footswitch will undo overdubs in sequence or erase the loop when playback is stopped.

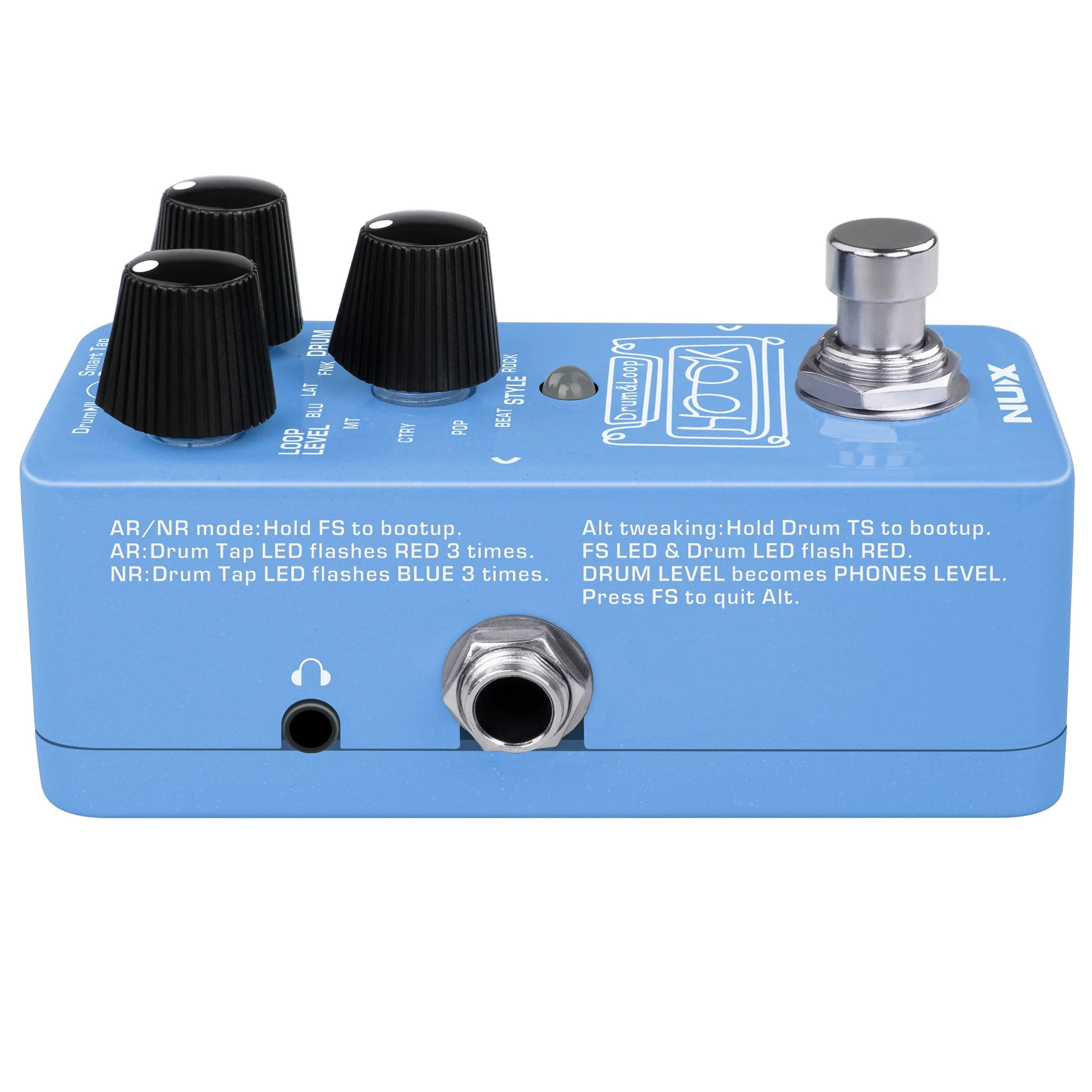

- A choice of two recording modes can be set, with NR mode for normal recording, or AR mode, which will only begin recording when a guitar note is played.
- Adding to the smart tap tempo operation, the Hook pedal can detect the rhythm of the guitar phrase and set the drum tempo to match it.
- The guitar loop also has its own level control to balance with the drum track.
- In addition to guitar input and mixed output jacks, there is a headphones minijack for silent practice.
- The last remaining connector is a type-C USB for firmware updates and even for saving and loading the onboard loop recording as a WAV file to a PC or mac computer.
Specification:
- Smart tap and auto-detect tempo
- 11 different drum styles
- Up to 6 minutes loop recording
- USB firmware and loop file management
- Headphones output
- Power supply9Vdc (centre-negative power adaptor required)
- Input impedance1M Ohms
- Output impedance10k Ohms (headphones output: 10 Ohms)
- Sampling format48kHz, 24-bit
- Current consumption<100mA
- Dynamic range103dB
- Dimensions94 x 53 x 51mm
- Weight 175g
